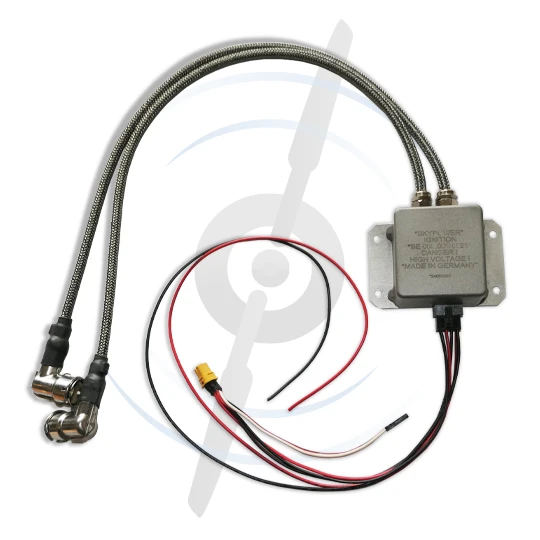

Twin Spark Ignition 45 cm

Pictures may vary from original product

Twin Spark Ignition 45 cm

Additional information

SKU: BF 000.000.0024 Category: Spare Parts Tags: SP-55 Series, SP-56 Series, SP-110 Series, SP-170 Series, SP-210 Series, SP-275 Series

264,00 € plus VAT

Description

Modern UAV (unmanned aerial vehicle) technology requires powerful, precise and, above all, reliable components to successfully complete its missions. One of these essential components is the Twin Spark Ignition 45 cm from Sky Power International – an ignition system that was specially developed for use in UAV engines and stands out thanks to its dual spark plug technology.

Technical specifications

Temperature range:

-40 °C / +65 °C, ambient temperature

Voltage range:

6 V – 8.4 V, nominal voltage

Power consumption (Standby):

10 mA

approx. 100 mA* / 8.4 V / 1000 rpm

approx. 600 mA* / 8.4 V / 6000 rpm

Ignition voltage:

>20 kV

rpm max:

10000 rpm

* Current consumption depends on the voltage of battery used with increasing voltage, current consumption goes down.
Like all other electronic devices the ignition box gets warm under operation conditions. For that reason a simple air flow will be necessary.

Key features of the Twin Spark Ignition 45 cm

Double ignition for maximum efficiency and safety

The Twin Spark Ignition 45 cm offers a unique, innovative solution for making Sky Power engines, more powerful but also safer. The double ignition means that two spark plugs work in parallel in every phase of the engine's operation. This technology ensures a more even combustion of the fuel-air mixture and leads to an increased energy output. The two spark plugs significantly improve the engine combustion process, resulting in better efficiency and higher performance. This means longer flight times and an improved range for the UAV. Should one spark plug fail, the UAV remains fully functional. The second spark plug takes over the ignition, which considerably increases safety and minimizes the risk of engine failure – especially important for long-range flights and in safety-critical applications.

High-quality manufacturing and durable materials

Sky Power International is known for its uncompromising quality. The Twin Spark Ignition 45 cm is made of high-quality materials that not only guarantee a long service life but also work reliably under extreme conditions. UAVs are often used in demanding environments – whether at high altitudes, extreme temperatures or in difficult weather conditions. This is exactly where the Twin Spark Ignition comes into its own. The ignition system is specially designed for use in harsh conditions. Whether at extremely low or high temperatures, the Twin Spark Ignition works precisely and reliably. Thanks to the use of high-quality materials and state-of-the-art manufacturing techniques, the ignition system is particularly durable and low-maintenance. This not only reduces operating costs, but also increases the operational readiness of the UAV.

Compatibility and flexibility

The Twin Spark Ignition 45 cm is not only powerful, but also extremely flexible. It can be easily integrated into a wide range of UAV engines and is compatible with most common engine types. Whether it's smaller UAVs or larger unmanned systems, the Twin Spark Ignition adapts to the requirements and offers a significant increase in performance in every case. The system is easy to use and install. Its well-thought-out design means it is quickly up and running, so UAV operators don't have to spend a lot of time on installation or maintenance.

Perfect for critical UAV applications

UAVs are used in a wide range of industries, from surveillance and mapping to military and humanitarian operations. For many of these missions, reliability and safety are top priorities. Sky Power's Twin Spark Ignition 45 cm provides the perfect solution to ensure the safety and performance of UAVs in every situation. When flying over long distances, continuous and safe engine performance is essential. Thanks to the dual ignition, the Twin Spark Ignition offers an additional layer of security. Whether in emergency medical services, search and rescue operations or military missions, the Twin Spark Ignition minimizes the risk of failures and ensures that UAVs operate reliably even in critical moments.

Conclusion: Twin Spark Ignition 45 cm from Sky Power – The first choice for UAV operators

The Twin Spark Ignition 45 cm from Sky Power International is the ideal choice for all UAV operators who demand the highest reliability, maximum efficiency and safety. With its innovative dual ignition technology, robust construction and universal compatibility, this ignition system sets new standards in the UAV industry.
