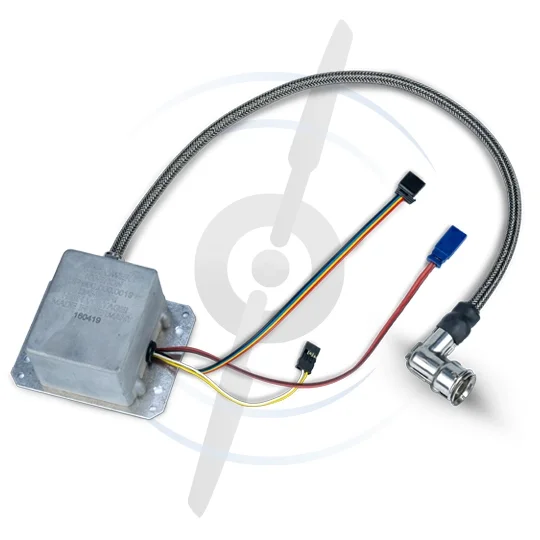

Single Spark Ignition 40 cm, Standard Housing

Pictures may vary from original product

Additional information

SKU: BF 000.000.0019 Category: Spare Parts Tag: SP-28 Series

225,50 € plus VAT

Description

This ignition can be used for the SP-28 CR engine in our portfolio.

General

For optimum operation of combustion engines an ignition system with auto timing is necessary. For easy starting a spark is ideal in the top dead center (TDC) of the engine. With increasing rpm a pre-ignition timing is needed.

This is achieved with our system using a high precision rpm-check by two magnets built-in the hub of the engine. The hall sensor transmits the signal to the microprocessor programmed with our engine characteristic.

Technical specifications

Temperature range: -40 °C / +65 °C, ambient temperature

Voltage range: 6 V – 8.4 V, nominal voltage

	single
Operating voltage	6 – 8.4 V
Power consumption (Standby)	10 mA
	approx. 100 mA* / 8.4 V / 1000 rpm
	approx. 600 mA* / 8.4 V / 6000 rpm
Ignition voltage	>20 kV
rpm max	10000 rpm

* Current consumption depends on the voltage of battery used with increasing voltage, current consumption goes down. Like all other electronic devices the ignition box gets warm under operation conditions. For that reason a simple air flow will be necessary.
